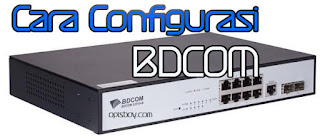

BDCOM Switch Configuration

Berikut  Tutorial atau Cara Configurasi Switch BDCOM

Tools yang harus disediakan

1. Laptop

2. Switch BDCOM

3. Kabel Aten RS232

4. Kabel Console BDCOM

5. Kabel UTP (Optional)

6. Putty Software

Step by Step

1. Pastikan bahwa kabel Aten sudah terdeteksi di Laptop / PC

2. Integrasikan / Sambungkan kabel Aten dan console BDCOM.

3. Port USB pada kabel Aten colokkan ke Port USB di Laptop, kemudian kabel Console BDCOM dicolokkan ke port Console di BDCOM

4. Buka Putty -> Pilih Serial -> Pastikan COM sama dengan yang terdeteksi di laptop




Switch > enable

switch # config

# Memberikan Nama atau Identity pada perangkat :


# Membuat Vlan Database :

SW.OPISBOY.FL2-BDCOM-01# interface vlan 100

vlan 100

name v100-NMS

vlan 101

name v1an101-Lantai1

vlan 102

name vlan102-Lantai2

vlan 103

name vlan103-Lantai3

# Menambahkan IP pada Interface Vlan :

SW.OPISBOY.FL2-BDCOM-01#interface vlan 100

SW.OPISBOY.FL2-BDCOM-01# ip address ~> masukan ip yang anda inginkan


# Menambahkan Default Route :

SW.OPISBOY.FL2-BDCOM-01#ip route default

# Konfigurasi Port Trunk atau Tagged :

SW.OPISBOY.FL2-BDCOM-01#interface GigaEthernet0/10

SW.OPISBOY.FL2-BDCOM-01#description Link To ISP/POP

SW.OPISBOY.FL2-BDCOM-01#switchport trunk vlan-allowed 100,101,102,103

SW.OPISBOY.FL2-BDCOM-01#switchport mode trunk


interface GigaEthernet0/1

description Link To Mikrotik Lantai 1

switchport trunk vlan-allowed 101

switchport mode trunk

SW.OPISBOY.FL2-BDCOM-01#interface GigaEthernet0/2

SW.OPISBOY.FL2-BDCOM-01#description Link To Lantai 2

SW.OPISBOY.FL2-BDCOM-01#switchport pvid 102

interface GigaEthernet0/3

description Link To Mikrotik Lantai 3

switchport trunk vlan-allowed 103

switchport mode trunk

# Banne Message :

 text ****************************************

 text *      Maintenance By:      XXXX    *

 text *      Email:      *

 text ****************************************

# Aktifkan DDM

SW.OPISBOY.FL2-BDCOM-01#ddm enable

# Aktifkan Telnet

SW.OPISBOY.FL2-BDCOM-01#line vty 0 4

# Aktifkan Login

SW.OPISBOY.FL2-BDCOM-01#username opb98 password opb@98

# Configurasi QnQ port configuration

Contoh Port yang kearah User

SW.OPISBOY.FL2-BDCOM-01#interface GigaEthernet0/1

SW.OPISBOY.FL2-BDCOM-01#description “Port access to user ”

SW.OPISBOY.FL2-BDCOM-01#switchport pvid 301

# Configurasi QnQ Port Configurasi

SW.OPISBOY.FL2-BDCOM-01#interface GigaEthernet0/9

SW.OPISBOY.FL2-BDCOM-01#description “Port trunk to POP/ISP”

SW.OPISBOY.FL2-BDCOM-01#switchport trunk vlan-allowed 101,301

SW.OPISBOY.FL2-BDCOM-01#switchport mode dot1q-tunnel-uplink

# Save Configurasi

SW.OPISBOY.FL2-BDCOM-01#write / wr

# Perintah - Perintah yang sering dipakai

SW.OPISBOY.FL2-BDCOM-01#sh run ~> untuk melihat semua konfigurasi

SW.OPISBOY.FL2-BDCOM-01#sh ip int ~> untuk melihat ip yang sudah kita konfigurasi

SW.OPISBOY.FL2-BDCOM-01#sh int vl ~> untuk melihat semua vlan

SW.OPISBOY.FL2-BDCOM-01#sh int bri ~> untuk melihat semua port

SW.OPISBOY.FL2-BDCOM-01#sh int G0/10 ~> untuk melihat Received Optical jika DDM disudah diaktifkan

Demikianlah tutorial singkat cara Konfigurasi BDCOM Switch, semoga bermanfaat.
